Making the lawn mower remote controlled can significantly enhance your lawn maintenance experience. This project requires some basic knowledge of electronics and mechanics but can be accomplished with the right tools and components. This article will guide you through the steps to make your lawn mower remote controlled, from gathering the necessary materials to assembling and testing your modified mower.
Materials and Tools Needed
Essential Components
Lawn Mower Base
Start with a functional manual lawn mower. This will serve as the base for your project. Ensure that the mower is in good working condition and that the blade and motor are operational.
Remote Control System
A remote control system typically includes a transmitter, receiver, and control unit. You can purchase a remote control kit designed for DIY projects. Make sure the system has a sufficient range to cover your entire lawn.
Motors
You’ll need electric motors to drive the wheels of the lawn mower. The power of the motors should be sufficient to move the mower across your lawn, even on inclines. Brushless DC motors are a popular choice due to their efficiency and durability.
Power Supply
Remote control lawn mowers typically use rechargeable batteries as a power source. Lithium-ion batteries are preferred due to their high energy density and longer lifespan. Ensure that the battery pack provides enough voltage and capacity to power the motors and control system.
Wheels and Mounting Hardware
Select appropriate wheels that can handle the terrain of your lawn. You’ll also need mounting hardware to attach the motors to the mower and the wheels to the motors. This includes brackets, nuts, bolts, and screws.
Tools
To assemble the remote control lawn mower, you will need the following tools:
- Screwdrivers
- Wrenches
- Drill and drill bits
- Soldering iron and solder
- Wire cutters and strippers
- Multimeter for testing electrical connections
Rayho Machinery is a professional lawn mower remote controlled factory in China, and we are the partner of China Government Agricultural Projects for 5 years.
Steps to Make Your Lawn Mower Remote Controlled
Step 1: Preparing the Lawn Mower Base
Removing Unnecessary Parts
Begin by removing any unnecessary parts from the manual lawn mower, such as the handle and any non-essential components. This will make it easier to install the motors and control system.
Securing the Base
Ensure that the base of the mower is stable and secure. Check for any loose parts and tighten them if necessary. This will provide a solid foundation for the rest of the components.
Step 2: Installing the Motors
Attaching the Motors
Attach the electric motors to the lawn mower base using mounting brackets and hardware. Position the motors so that they can directly drive the wheels. Make sure the motors are securely fastened to prevent any movement during operation.
Connecting the Wheels
Attach the wheels to the motors. Ensure that the wheels are properly aligned and can rotate freely. Test the wheel movement to confirm that the motors can effectively drive the mower.
Step 3: Setting Up the Power Supply
Installing the Battery Pack
Install the battery pack in a secure location on the lawn mower base. Ensure that the battery is protected from debris and moisture. Use mounting brackets or straps to keep the battery in place.
Wiring the Power Supply
Connect the battery pack to the motors and the control system. Use appropriate gauge wires to handle the current draw of the motors. Solder the connections for a secure and reliable electrical connection. Use a multimeter to check the connections and ensure proper voltage is being supplied.
Step 4: Integrating the Remote Control System
Connecting the Receiver
Install the remote control receiver on the lawn mower base. Connect the receiver to the motors and power supply according to the instructions provided with the remote control kit. Ensure that all connections are secure and properly insulated.
Testing the Control System
Turn on the transmitter and test the remote control system to ensure that it can properly control the mower’s movement. Check the response of the motors to the remote commands, and make any necessary adjustments to the control unit settings.
Step 5: Final Assembly and Testing
Securing All Components
Ensure that all components are securely fastened to the lawn mower base. Check for any loose wires or parts and secure them. Make sure that the mower is balanced and stable.
Conducting a Test Run
Perform a test run of the remote control lawn mower on a flat, open area. Test all functions, including forward and backward movement, turning, and stopping. Observe the mower’s performance and make any necessary adjustments to improve its operation.
Troubleshooting and Maintenance
Addressing Common Issues
If the mower does not respond to the remote control, check the connections between the receiver, motors, and power supply. Ensure that the transmitter and receiver are properly paired. If the mower moves erratically, check for any loose or misaligned components.
Regular Maintenance
Perform regular maintenance on your remote control lawn mower to keep it in good working condition. This includes checking and tightening all connections, cleaning the mower to remove debris, and ensuring that the battery is charged and in good condition.
Conclusion
Converting your lawn mower into a remote-controlled machine is a challenging yet rewarding project that combines elements of mechanics, electronics, and remote control systems. By following the steps outlined in this article, you can create a customized remote control lawn mower that meets your specific needs. With proper assembly and regular maintenance, your DIY remote control lawn mower can provide efficient and convenient lawn care for years to come.
Rayho Machinery dedicates to the development and sales of lawn mower remote controlled in China, and we are willing to share information with you if you need.
The remote controlled lawn mower is popular with clients from US, EU, Asia,Australia,Japan,etc.

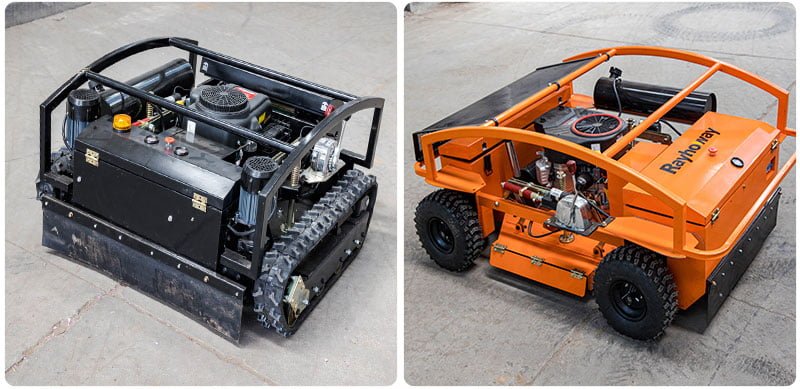

Main lawn mower remote controlled includes: wheeled lawn mower and crawler lawn mower.
