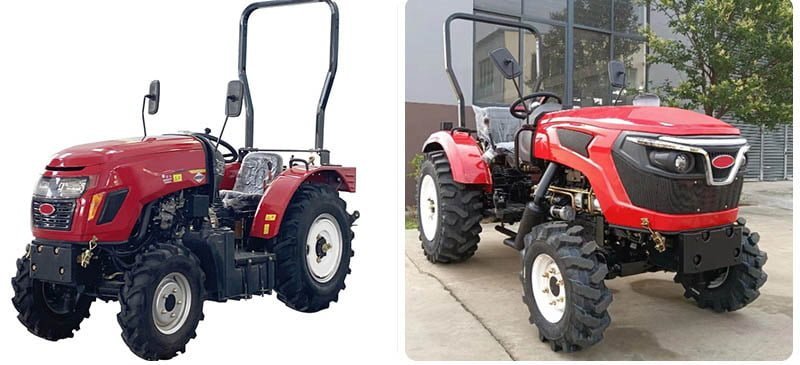

50hp 4×4 compact garden tractor
*Rayho-50HP small garden Tractor is smaller and narrower in size and have features that allow them to navigate through narrow aisles and tight spaces or on smaller plots of land within the greenhouse. Widely used in orchards, tea gardens, vineyards, mountains, etc.
*It is equipped with rotary tillage, plows, cultivators, harrows, seeders, etc farm attachments which can be easily interchanged to perform different tasks in a single machine.
*The wheelbase is short between 1.4-1.6m. Orchard and sun shed tires are small in diameter, low in height and compact, and the filter and muffler are arranged in the lower row, which has good space passability.
Product Description
50hp 4×4 small garden tractor
| Model | RH504A | |
|
Basic Information | Size(mm) | 2800×1240×2085mm |
| Rated power(kw) | 36.8 | |
| Min Usage weight | 1550kg | |

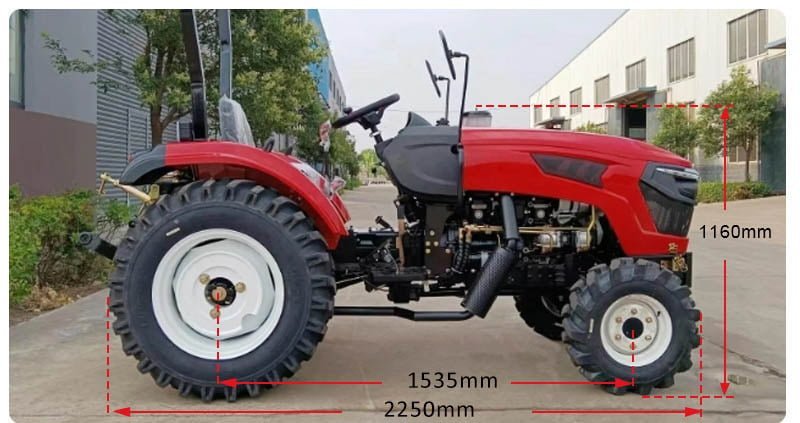

| Wheel base | 1535mm | |
| Drive Type | 4×4 Drive | |
| Min Ground Clearance | 300mm | |
| Front Tread(mm) | 920 | |
| Rear Tread(mm) | 960(960～1200)Adjustable | |
| Match Power | Engine brand | 4 cylinder Yunnei |
| Clutch type | Dry-type, single-acting | |
| Rated speed | 2400(r/min) | |
| Working Part | Gearbox | TY8F+2R |
| PTO type | 6in,Φ35,I Type(Option: 8 Pin) | |
| PTO rated power(kw) | ≥31.3 | |
| PTO speed | 760r/min (Optional540/720) | |
|
Hydraulic System
| Hydraulic output | Simple output (Optional: 2-Way valve) |
| 3 Point linkage | Rear, three-point suspension,CAT1 | |
| Hydraulic adjustment model | Forced hydraulic system, position control, floating control | |
| Max.lift-off force(KN) | ≥8.9 | |
| Standard tire type | Front:6.00-16/Rear:9.5-24 | |
| Other options | Heated cabin, Rop, etc. | |
5 Things You Need To Know Before Buying Small Garden Tractor
What is your purpose?
-You buy it for yourself or as a wholesale.
Where to use it?
– In paddy fields or dry land.
-on flat big farm, or on small garden, narrow greenhouse, Greenhouse, Orchard, etc.
What is the main function for a tractor?
-mowing, tilling, plowing, etc farm working.
-loading, excavation, etc engineering working.
Which part is import for a quality garden tractor?
-Diesel engine, Hydraulic output, 3 Point linkage, PTO type, Tire type, Clutch type, Gear box.
Whether have good sales service for supplier?
-special product knowledge, Installation Services, good after-sales service.
What benefits can we bring to you?
1).Tractor models: Our tractors are affordable, long service life, tractor models are from
15 HP to 280HP.
2).Customization: Color choice, Tractor configuration, trademarks, etc.
3).Discounts and Price:
-We give you more discounts to open the market for new clients.
-We provide you with enough profit margin based on the needs of different customers.
4). Small garden tractor Quality: We have CE certification and finish 100% inspection before shipment.
5).After sales service:
-1 year warranty service of diesel engine,
-sufficient inventory of farm tractor and farm tools,
-free product install and market training.
6).Visualization of compact garden tractor:
-We support clients visitation.
-Garden Tractor process, packing and transportation are open for you.
Export Packing and Loading of garden tractor:

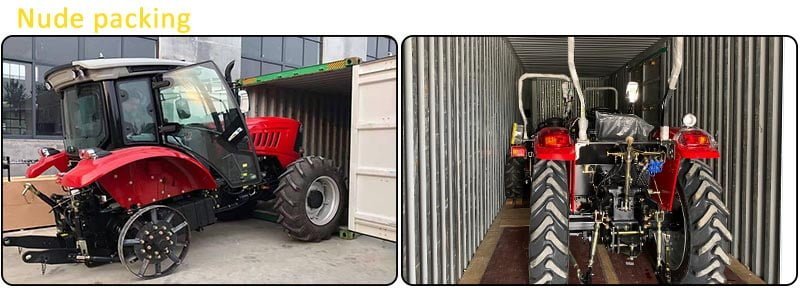

1.Nude packing: suitable for some customers who do not have the ability to combine the tractor.

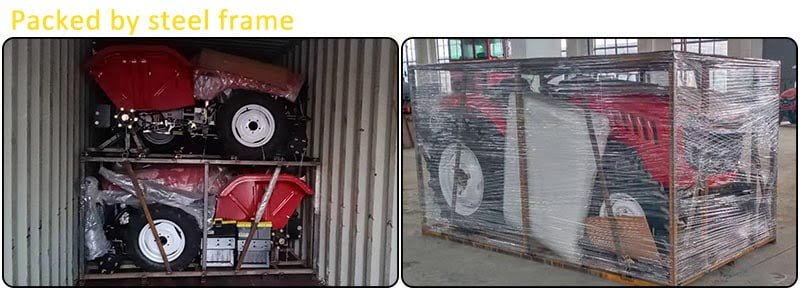

2.Iron frame: suitable for agents or resellers who can remove some parts,
meanwhile reduce the delivery cost.If you need 1-3 units ,you can choose nude packing by LCL.
Full container: If you order more than 4 units will loading by 20GP or 40HC container.
Rayho machinery is a professional factory of agricultural and forest machinery. Main Products
are Walking tractor, 4WD mini tractor,4WD small tractor, 4WD farm tractor,
Crawler tractor,Power tiller, Mower machine,Harvester machine,Sprayer machine,
Thresher machine,Forestry Machinery, etc 15 series products,
We are Reliable supplier of China Government Agricultural Projects for 6 years.We pass
ISO 9001 international quality standards and have CE certification.
Rayho focus on Product Quality and provide the Best Solution.
Email:info@rayhotec.com Wechat/Whatsapp:+86 18954721983.
