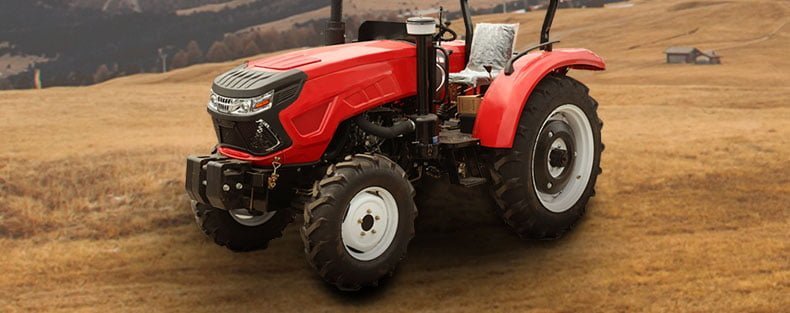

4×4 50hp Wheeled greenhouse Tractor
*Rayho-50HP Greenhouse Tractor is smaller in size and have features that allow them to navigate through narrow aisles and tight spaces within the greenhouse. Widely used in orchards, tea gardens, vineyards, mountains,etc.
*It is typically equipped with low-profile tires to minimize soil compaction and have a compact design to maneuver easily between rows of plants.

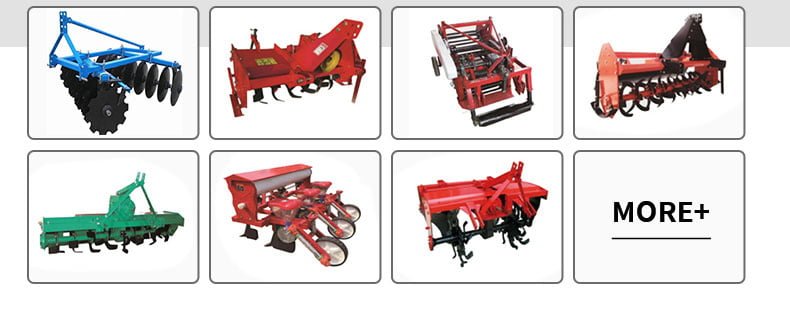

*Manwhile, It often comes with attachments that is specifically designed for greenhouse operations, such as seeders, sprayers, and cultivators and finish various tasks such as soil preparation, planting, watering, fertilizing, and harvesting crops within the controlled environment of a greenhouse.
* The wheelbase is narrow, generally between 0.85-1m, and the wheelbase is short between 1.4-1.6m. It has good steering performance and many machine tool interfaces. tires are small in diameter, low in height and compact, and the filter and muffler are arranged in the lower row, which has good space passability.
Product Description
4×4 50hp Wheeled greenhouse Tractor
5 Things You Need To Know Before Buying Tractor
What is your purpose?
-You buy it for yourself or as a wholesales.
Where to use it?
– In paddy fields, dry land.
-on flat big farm, on small garden, on narrow greenhouse, Greenhouse, Orchard, etc.
What is the main function for a tractor?
-mowing, tilling, plowing, etc farm working, or loading, excavation, etc engineering working.
Which part is import for a quality tractor?
-brand engine, hydraulic steering, Gear shifts.
Whether have good after-sales service?
-special product knowledge, Installation Services, good after-sales service.
| Model | RH504A | |
|
Basic Information | Size(mm) | 2800×1240×2085mm |
| Rated power(kw) | 36.8 | |
| Min Usage weight | 1550kg | |
| Wheel base | 1820mm | |
| Drive Type | 4×4 Drive | |
| Min Ground Clearance | 300mm | |
| Tread(mm) | 1200(1000～1400)Adjustable | |
| Match Power | Engine brand | 4 cylinder Yunnei |
| Clutch type | Dry-type, single-acting(Optional double acting) | |
| Rated speed | 2400(r/min) | |
| Working Part | Gearbox | TY8F+2R (optional:8F+8R) |
| PTO type | 6in,Φ35,I Type(Option: 8 Pin) | |
| PTO rated power(kw) | ≥31.3 | |
| PTO speed | 760r/min (Optional:540/720) | |
|
Hydraulic System
| Hydraulic output | Simple output (Optional: 2-Way valve) |
| 3 Point linkage | Rear, three-point suspension,CAT1 | |
| Hydraulic adjustment model | Inner hydraulic(Optional: forced hydraulic system) | |
| Max.lift-off force(KN) | ≥8.9 | |
| Standard tire type | Front:6.00-16/Rear:9.5-24 | |
| Other options | Heated cabin, Rop, sun-shade,etc. | |
What benefits can we bring to you?
1).Product models: Our tractors are affordable, long service life, tractor models are from 15HP to 280HP.
2).Customization of greenhouse tractor: We meet your customization service from color choice, machine configuration to products trademarks.
3).Discounts and Price:
We give you more discounts to open the market for new clients.
We provide you with enough profit margin based on the needs of different customers.
4). Product Quality: We have CE certification and finish 100% inspection before shipment.
5).After sales service:
1 year warranty service of diesel engine,
sufficient inventory of farm tractor and farm tools,
free product install and market training.
help clients purchase matched agriculture tools to save time and money
6).Visualization:
We support clients visitation.
Tractor process, packing and transportation are open for you.
Export Packing and Loading of greenhouse tractor:
1.Nude packing: suitable for some customers who do not have the ability to combine the tractor.
2.Iron frame: suitable for agents or resellers who can remove some parts, meanwhile reduce the delivery cost.
If you need 1-3 units ,you can choose nude packing by LCL.
Full container: If you order more than 4 units will loading by 20GP or 40HCcontainer.
