small single cylinder diesel engine
Rayho single cylinder diesel engine has fewer moving parts, making it easier to maintain and repair. Additionally, single cylinder diesel engines are more fuel-efficient compared to multi-cylinder engines, as they have a higher compression ratio and better thermal efficiency. They are also compact and lightweight, making them suitable for applications where space is limited. However, single cylinder engines may have lower power output and higher vibrations compared to multi-cylinder engines.
Product Description
small single cylinder diesel engine
Small diesel Engine Parameters
Model ZS195 ZS1100 ZS1105 ZS1110 ZS1115 ZS1125 ZS1130 Horsepower(HP) 13HP/7.2KW 15HP/12.1KW 18HP/13.3KW 20HP/14.56KW 22HP/16.18KW 25HP/18.15KW 30HP/20.1KW Cylinder Diameter 95mm 100mm 105mm 110mm 115mm 125mm 130mm Displacement 0.815L 0.903L 0.996L 1.0931L 1.1945L 1.473L 1.659L Combustion Chamber Swirl combustion Swirl combustion Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection Lubricating method Pressure splash spray Pressure splash spray Pressure splash spray Pressure splash spray Pressure splash spray Pressure splash spray Pressure splash spray Cooling system
Evaporation/Condensing Evaporation/Condensing Evaporation/Condensing Evaporation/Condensing Evaporation/Condensing Evaporation/Condensing Evaporation/Condensing Fuel tank capacity 12L 12L 12L 12L 12L 12L 12L Starting method Hand cranking or electric starting Hand cranking or electric starting Hand cranking or electric starting Hand cranking or electric starting Hand cranking or electric starting Hand cranking or electric starting Hand cranking or electric starting Fuel consumption ≤258.4g/kw.h ≤257g/kw.h ≤244.8g/kw.h ≤244.8g/kw.h ≤244.8g/kw.h ≤244.8g/kw.h ≤244.8g/kw.h Net Weight 145kgs 155kgs 155kgs 180kgs 185kgs 208kgs 212kgs

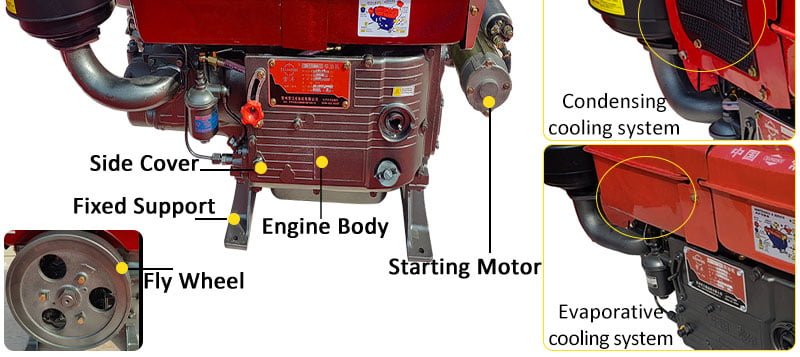

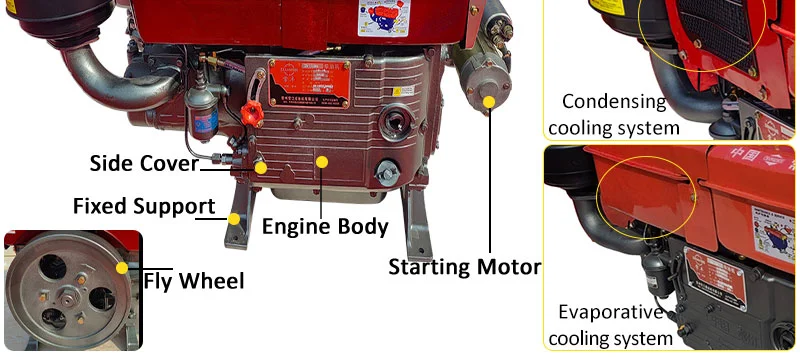

Diesel Engine Structure

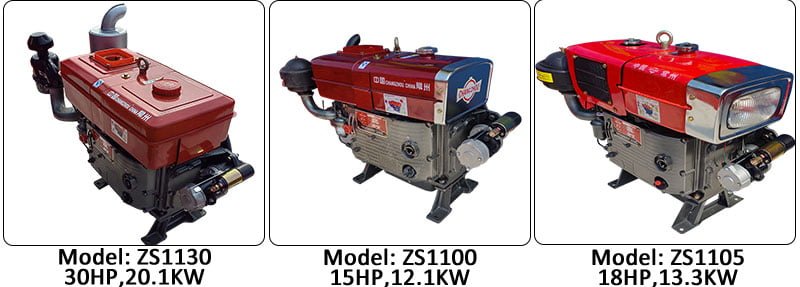

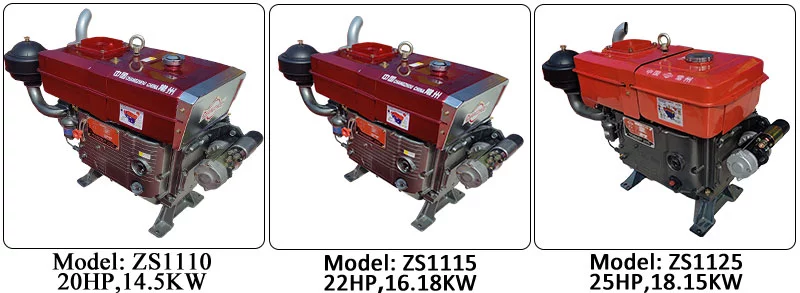

Small diesel Engine Model
4 Things You Need To Know Before Buying Diesel Engine.
Q: You buy it for yourself or as a wholesaler?
A: We have big support for wholesaler for new clients.
Q: Do you accept OEM service?
A: Yes, and the Horse Power is from 8HP to 30HP.
Q: Whether have good sales service for supplier?
A: Special product knowledge, Installation Services for new clients,
Q: Do you sell walking tractor together with small diesel engine?
A: yes, and, we can load it in a container together.
Rayho Machinery Information
We specialize in the production and sales of Agriculture machinery.
-Since 2007, our Wheeled tractor, Crawler tractor, Lawn mower, RC sprayer etc 15 series products have been exported to over 20 countries worldwide.
-It is popular with clients from USA, EU, Australia, Africa, Asia for product quality and good after sales service.
-We have CE certification and 100% inspection before shipment. and We are Reliable supplier of China Government Agricultural Projects since 2012.
-We take product quality as our top priority, at the same time you can lower your cost by quoting directly from the factory.
Shipment and Payment Terms
-Generally, the small diesel engine will be well packed in a container and shipped to your local port via the sea freight.
-We accept T/T and L/C, depending on what is convenient for you.
